Network Change Validation Meets Supersized Network Emulation

Large scale networks means large scale configuration and change management testing. Or at least it should.

But device expense, power costs, and space limitations mean full scale physical network labs don’t happen. We, the engineers, get to roll-out complex network changes based on limited tests and what we hope is a well thought out, bulletproof rollback plan. We often risk significant loss of revenue for the company and significant loss of sleep for ourselves if changes go poorly.

This is not just a big shops problem either.  Even – or perhaps especially, small to medium enterprises lack full scale physical labs to simulate changes.  I’ve known one engineer that used to have a Nexus 5K on his desk (I’m looking at you @that1guy_15), but most of us are lucky to have a few pieces of equipment to cobble together to give us the general gist of the impact of a potential network change.

With the cloud eating everything, it’s about time that it started giving back to engineers – and that is what Tesuto seeks to do.  Tesuto leverages cloud to perform large scale emulation of networks, while allowing engineers to leverage modern automation tools and testing along the way.

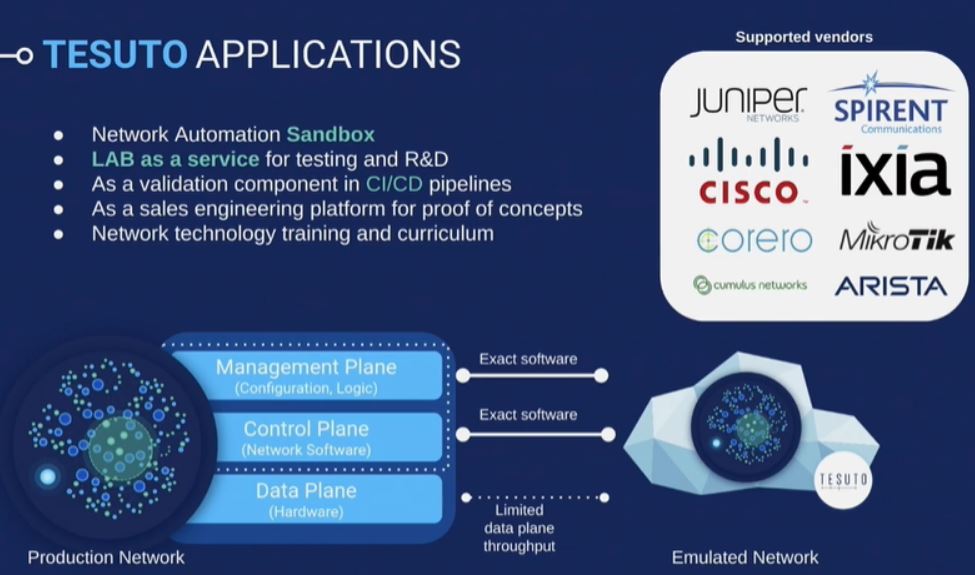

Tesuto spins up emulation devices in Google Cloud or Digital Ocean, with support coming soon for Azure, AWS, and private cloud as well.  These spun-up devices have full L2 connectivity with each other and are running the actual vendor images, giving engineers emulations that can accurate reflect control plane functionality for configuration and change testing at the scale your network demands.

It’s worth noting that if you want to test ASIC specific functionality or throughput testing, this is not the platform for those types of tests. Emulations are ideal for control plane and connectivity testing, such as making BGP routing changes and seeing what neighbor relationships you hosed up, but not so ideal for how many packets per second a device can spit out.

So why not use GNS3, which offers device emulation as well?  Resource scale, ease of use, Rapid Initialization*, and the ability to tie into modern automation configuration and testing tools such as Ansible, NAPALM, etc…, are just a few reasons why cloudifying your network emulations with Tesuto starts to make sense.

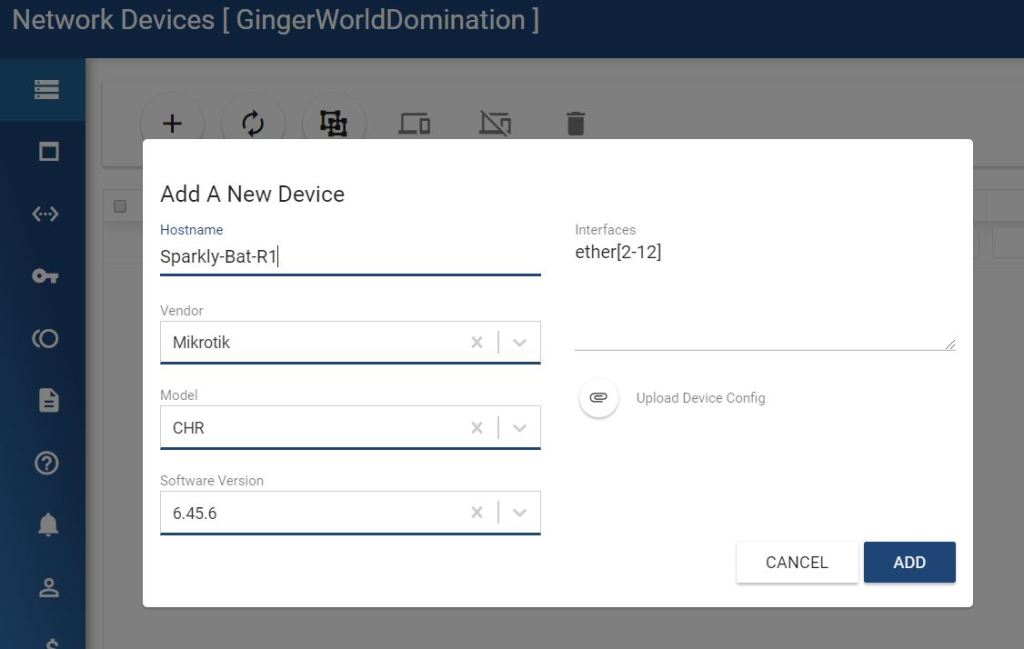

Personally, I found the interface to be pretty intuitive, creating a few routers from different vendors, connecting them, and logging into the Tesuto provided jumpbox was quick and painless. Uploading licensed images for some vendors is required, so be prepared to BYOI (bring your own image).

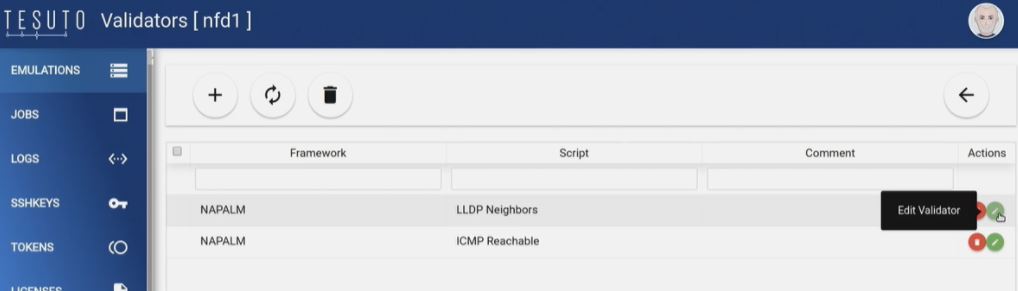

The ability to run built in NAPALM validation tests takes a bit more finesse and experience, as does integrating Tesuto into your automated change management pipeline if you have one. With a bit of additional work, though, you can create your own validation tests, you are not limited to the built in tests or to NAPALM.

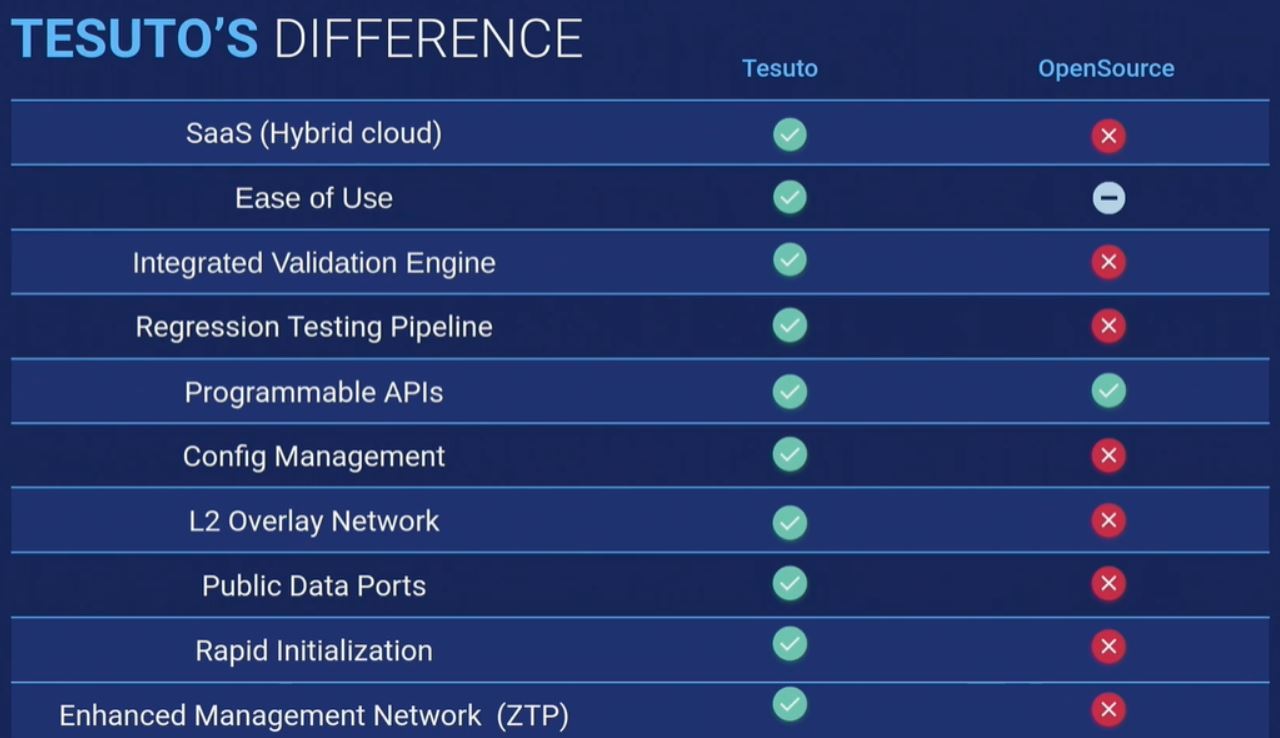

Tesuto brings a ton of additional features to network emulation, as you can see from the chart below. I recommend watching both NFD21 presentations, especially this demo in which a lot of questions you don’t even know you have yet are answered, and be sure to check out pricing information here for details on their pay as you go plan or monthly commit plan.

*Tesutos’s Rapid Initialization is a feature which significantly decreases boot time of the devices after first power on, so that MX router that takes 25 mins to boot the first time in an emulation takes only 5 mins on future boots.



Disclaimer: While Networking Field Day, which is sponsored by the companies that present, was very generous to invite me to the fantastic NFD21 event and I am very grateful for it, my opinions are totally my own, as all redheads are far too stubborn to have it any other way.

Published 10/13/2019

3 thoughts on “Network Change Validation Meets Supersized Network Emulation

  1. I think this is great for large scale businesses that can easily afford that and that need it, but at the price, small businesses can’t really afford to spend that just for the emulation. It’s a great concept, and looks like a great product, but I don’t think I could convince my CIO to give me a minimum of $6,000 per year just to be able to emulate servers that will also require licenses.

    Just from my past experience in a larger-scale envrionment, though, we didn’t really emulate our lab, we just built a full scale lab environment. We had an entire CUCM cluster of servers that were “lab” servers, we had a physical video lab that included a full scale conference room. But now I’m in an environment where even the smallest cost is counted and reflected on constantly to determine if it is REALLY needed.

    Great write up! I enjoyed learning about the product!

    1. Hi Jaron
      Thanks for your thoughts
      Tesuto people here
      We have recently rolled out some optimization projects that allows us to use cloud resource more efficiently.
      As a result, we were able to significantly reduced our prices after your comment was posted.
      please take a https://www.tesuto.com/pricing/ for latest pricing information
      We believe with the new pricing structure, the budget allocation is justified easier if you factor in the engineering cycles saved when using Tesuto vs DIY alternatives
